Golfdata van HR-database naar TBCI

In dit voorbeeld laten we zien hoe golfdata van een officiële HR database geëxporteerd kan worden naar een formaat wat bruikbaar is voor de FragilityCurveOvertoppingWaveData module. Globaal betekent dit dat we de relevante uit de HR database de relevante data ophalen, interpoleren en/of extrapoleren naar een regelmatig waterstandsgrid en opslaan in een stel CSV bestanden.

Dit voorbeeld resulteert dan ook in een set aan CSV bestanden. Dit is puur ter illustratie van het voorbeeld, de golfdata kan ook in een database of een ander bestandsformaat opgeslagen worden. Toolbox Continu Inzicht ondersteunt dit ook, maar dat betekent wel dat hiervoor bijbehorende DataAdapters gedefinieerd moeten worden.

import sqlite3
from math import ceil
from pathlib import Path
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy.interpolate import interp1d

Uitlezen HR data

We zetten eerst een verbinding op met een voorbeeld database.

conn = sqlite3.connect(
    Path.cwd()
    / "data_sets"
    / "103.extract_wavedata_hrdb"
    / "Copy_DEMO_IJsselmeer.sqlite"
)

In de HR database zijn verschillende tabellen aanwezig die we nodig hebben:

hrd_wind = pd.read_sql("SELECT * FROM HRDWindDirections", conn)
hrd_closingsit = pd.read_sql("SELECT * FROM ClosingSituations", conn)
hrd_inputvar = pd.read_sql("SELECT * FROM HRDInputVariables", conn)
hrd_resultvar = pd.read_sql("SELECT * FROM HRDResultVariables", conn)
hrd_uncert = pd.read_sql("SELECT * FROM UncertaintyModelFactor", conn)

hrd_locs = pd.read_sql("SELECT * FROM HRDLocations", conn)
hrd_locs["geometry"] = gpd.points_from_xy(hrd_locs.XCoordinate, hrd_locs.YCoordinate)
hrd_locs = gpd.GeoDataFrame(hrd_locs, geometry="geometry", crs="epsg:28992")

display(hrd_locs)
display(hrd_wind)
display(hrd_closingsit)
display(hrd_inputvar)
display(hrd_resultvar)
display(hrd_uncert)
HRDLocationId LocationTypeId Name XCoordinate YCoordinate WaterLevelCorrection BedLevel Acceptatie geometrie geometry
0 1 4 YM_2_6-1_dk_01009 152538.0 544369.0 0.0 -999 1 POINT (152538 544369)
1 7 4 YM_2_6-2_dk_01184 154001.0 562864.0 0.0 -999 1 POINT (154001 562864)
2 56 4 YM_2_7-2_dk_00686 168890.0 526763.0 0.0 -999 1 POINT (168890 526763)
3 98 4 YM_2_8-3_dk_00537 165227.0 510327.0 0.0 -999 1 POINT (165227 510327)
4 111 4 KM_2_8-4_dk_00054 179050.0 510807.0 0.0 -999 1 POINT (179050 510807)
5 138 4 YM_2_12-2_dk_00072 136587.0 540167.0 0.0 -999 1 POINT (136587 540167)
6 151 4 YM_2_13-6_dk_00233 147407.0 528762.0 0.0 -999 1 POINT (147407 528762)
HRDWindDirectionId Direction
0 1 225.0
1 2 22.5
2 3 45.0
3 4 67.5
4 5 90.0
5 6 112.5
6 7 135.0
7 8 157.5
8 9 180.0
9 10 202.5
10 11 247.5
11 12 270.0
12 13 292.5
13 14 315.0
14 15 337.5
15 16 360.0
ClosingSituationId Description
0 1 Regular
HRDInputColumnId ColumnName InputVariableId UnitFactor
0 1 WINDS 9 1.0
1 3 MEERP 7 1.0
HRDResultColumnId ColumnName ResultVariableId UnitFactor RepairNonDecreasingValues
0 1 ZMAX 1 1.0 0
1 2 Hsign 2 1.0 0
2 3 Tpiek 4 1.0 0
3 4 Dir 7 1.0 0
4 8 Tm-1,0 6 1.0 0
HRDLocationId ClosingSituationId HRDResultColumnId Mean Standarddeviation
0 111 1 1 0.00 0.35
1 111 1 2 0.99 0.19
2 111 1 3 0.96 0.11
3 111 1 8 0.96 0.11
4 138 1 1 0.00 0.15
5 138 1 2 0.99 0.19
6 138 1 3 0.96 0.11
7 138 1 8 0.96 0.11
8 151 1 1 0.00 0.15
9 151 1 2 0.99 0.19
10 151 1 3 0.96 0.11
11 151 1 8 0.96 0.11
12 1 1 1 0.00 0.15
13 1 1 2 0.99 0.19
14 1 1 3 0.96 0.11
15 1 1 8 0.96 0.11
16 7 1 1 0.00 0.30
17 7 1 2 0.99 0.19
18 7 1 3 0.96 0.11
19 7 1 8 0.96 0.11
20 56 1 1 0.00 0.30
21 56 1 2 0.99 0.19
22 56 1 3 0.96 0.11
23 56 1 8 0.96 0.11
24 98 1 1 0.00 0.30
25 98 1 2 0.99 0.19
26 98 1 3 0.96 0.11
27 98 1 8 0.96 0.11

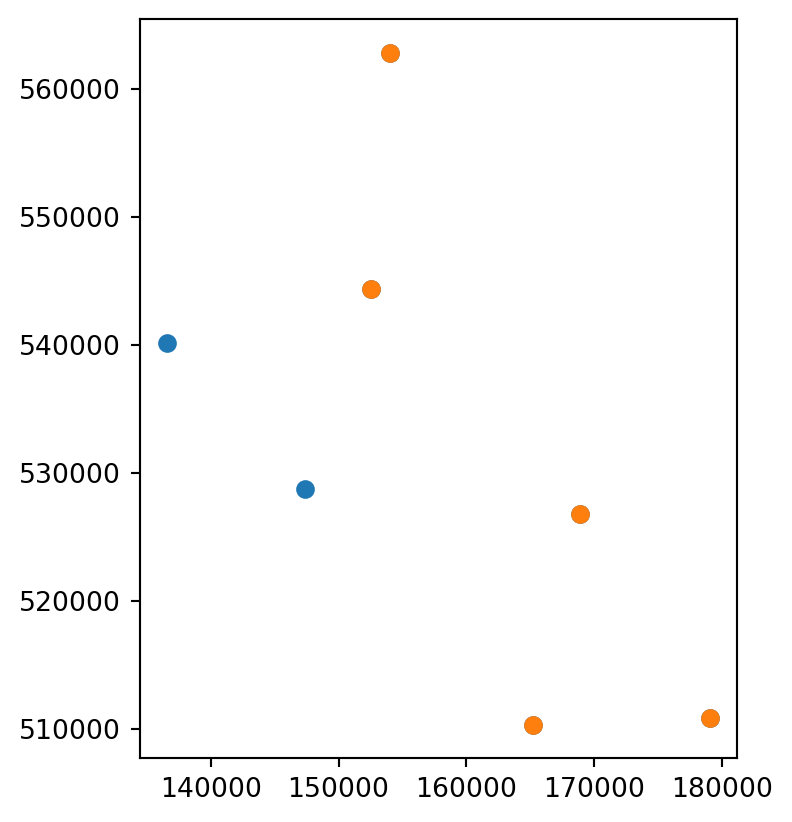

De locaties aanwezig in de database kunnen we snel geografisch weergeven. in dit voorbeeld gaan we voor vijf locaties de golfdata ophalen (oranje locaties in onderstaande plot)

# subset_hrd_locs = hrd_locs.copy()
subset_hrd_locs = hrd_locs.iloc[
    np.arange(0, len(hrd_locs), int(len(hrd_locs) / 4)), :
].copy()
subset_hrd_locs = subset_hrd_locs.iloc[0:5].copy()


ax = hrd_locs.plot()
subset_hrd_locs.plot(ax=ax)
subset_hrd_locs.Name.tolist()
['YM_2_6-1_dk_01009',
 'YM_2_6-2_dk_01184',
 'YM_2_7-2_dk_00686',
 'YM_2_8-3_dk_00537',
 'KM_2_8-4_dk_00054']

Relevante golfdata ophalen

In de volgende stap gaan we de input- en outputstochasten die aanwezig zijn koppelen met de beschikbare data en locaties. Daarvoor moeten we eerst een aantal objecten definieren: wat de naam is van de lokale waterstand (veelal ZWL) en de namen van de golfparameters. Deze namen hebben default waardes die vaakgebruikt worden, maar het is verstandig om deze namen te checken in de output van de eerder getoonde hrd_inputvar en hrd_resultvar. Tenslotte geven we een vaste stapgrootte op voor het regelmatige waterstandsgrid. In dit voorbeeld gebruiken we daarvoor 0.2 meter, maar dit is vrij instelbaar. Dit is wel een belangrijke parameter voor de uiteindelijke grootte van de data.

# De lokale waterstand koppelen we via id=1 (veelal heet deze ZWL)
wl_name = hrd_resultvar[hrd_resultvar.ResultVariableId == 1].ColumnName.iat[0]
display(f"{wl_name=}")

# De golfdata moet de significante golfhoogte, spectrale golfperiode en de golfrichting bevatten.
# Deze koppelen we via id 2, 6, en 7. Veelal heten deze parameters 'Hs', 'Tm-1,0', 'Wave direction'
wave_param_names = hrd_resultvar[
    hrd_resultvar.ResultVariableId.isin([2, 6, 7])
].ColumnName.tolist()
display(f"{wave_param_names=}")

ws_name = hrd_inputvar[hrd_inputvar.InputVariableId == 9].ColumnName.iat[0]
display(f"{ws_name=}")

# Stapgrootte waterstandsgrid (in meters)
wl_stepsize = 0.2
"wl_name='ZMAX'"
"wave_param_names=['Hsign', 'Dir', 'Tm-1,0']"
"ws_name='WINDS'"

Het volgende codeblok koppelt de gegevens aan elkaar en geeft per locatie, per golfparameter het aantal datapunten voor interpolatie en na interpolatie. De interpolatie en extrapolatie is lineair. Voor de golfrichting wordt hierbij rekening gehouden met het feit dat het circulaire data is.

wavevalid = 0
all_df = []
all_df_red = []
for locrow in subset_hrd_locs.itertuples():
    cases = []
    for row in hrd_inputvar.itertuples():
        cases.append(
            f"MAX(CASE WHEN i.HRDInputColumnId = {row.HRDInputColumnId} THEN i.Value END) AS '{row.ColumnName}'"
        )
    for row in hrd_resultvar.itertuples():
        cases.append(
            f"MAX(CASE WHEN r.HRDResultColumnId  = {row.HRDResultColumnId} THEN r.Value END) AS '{row.ColumnName}'"
        )

    sql = f"""
        SELECT
            d.HydroDynamicDataId,
            d.HRDLocationId,
            l.Name AS HRDLocationName,
            d.ClosingSituationId,
            c.Description AS ClosingSituationName,
            d.HRDWindDirectionId,
            w.Direction AS HRDWindDirectionName,
            {",".join(cases)}
        FROM
            HydroDynamicData d
        INNER JOIN
            HRDLocations l ON d.HRDLocationId=l.HRDLocationId
        INNER JOIN
            ClosingSituations c ON d.ClosingSituationId=c.ClosingSituationId
        INNER JOIN
            HRDWindDirections w ON d.HRDWindDirectionId = w.HRDWindDirectionId
        LEFT JOIN
            HydroDynamicInputData i ON i.HydroDynamicDataId = d.HydroDynamicDataId
        LEFT JOIN
            HydroDynamicResultData r ON r.HydroDynamicDataId = d.HydroDynamicDataId
        WHERE
            l.Name='{locrow.Name}'
        GROUP BY
            d.HydroDynamicDataId,
            d.HRDLocationId,
            d.ClosingSituationId,
            d.HRDWindDirectionId;
    """
    df = pd.read_sql(sql, conn)

    # waterlevel vector
    steps = int(np.ceil((df[wl_name].max() - df[wl_name].min()) / wl_stepsize) + 1)
    wl_vec = np.linspace(df[wl_name].min(), df[wl_name].max(), steps)

    all_result_vars = hrd_resultvar[hrd_resultvar.ColumnName.isin(wave_param_names)]
    nbefore = {k: 0 for k in all_result_vars.ColumnName.tolist()}
    nafter = {k: 0 for k in all_result_vars.ColumnName.tolist()}
    for resultrow in all_result_vars.itertuples():
        resultvar = resultrow.ColumnName

        for (winddir_id, winddir, ws), group in df.groupby(
            ["HRDWindDirectionId", "HRDWindDirectionName", ws_name]
        ):
            wavevalid += 1
            winddir_id = int(winddir_id)
            winddir = round(float(winddir), 2)
            ws = float(ws)

            data = group[[wl_name, resultvar]].drop_duplicates().to_numpy()
            if resultvar == "Wave direction":
                angles = np.deg2rad(data[:, 1])
                sin_interp = interp1d(
                    data[:, 0], np.sin(angles), fill_value="extrapolate"
                )
                cos_interp = interp1d(
                    data[:, 0], np.cos(angles), fill_value="extrapolate"
                )
                resultvec = np.rad2deg(
                    np.arctan2(sin_interp(wl_vec), cos_interp(wl_vec))
                )
                resultvec = np.mod(resultvec, 360.0)
            else:
                resultvec = interp1d(data[:, 0], data[:, 1], fill_value="extrapolate")(
                    wl_vec
                )
                resultvec[resultvec < 0] = 0.0
            ws_group_red = np.vstack([wl_vec, resultvec]).T

            nbefore[resultvar] += data.shape[0]
            nafter[resultvar] += ws_group_red.shape[0]

            df_org = pd.DataFrame(data, columns=["waterlevel", "waveval"])
            df_red = pd.DataFrame(ws_group_red, columns=["waterlevel", "waveval"])
            for append_vec, dfi in zip([all_df, all_df_red], [df_org, df_red]):
                dfi["winddir"] = winddir
                dfi["windspeed"] = ws
                dfi["hr_locid"] = locrow.HRDLocationId
                dfi["hr_location"] = locrow.Name
                dfi["waveval_type"] = int(resultrow.ResultVariableId)
                dfi["waveval_id"] = wavevalid
                append_vec.append(dfi.copy())

    print(f"{locrow.Name}: {nbefore}, {nafter}")

all_df = pd.concat(all_df, ignore_index=True)
all_df_red = pd.concat(all_df_red, ignore_index=True)

all_df_red

YM_2_6-1_dk_01009: {‘Hsign’: 800, ‘Dir’: 800, ‘Tm-1,0’: 800}, {‘Hsign’: 2880, ‘Dir’: 2880, ‘Tm-1,0’: 2880} YM_2_6-2_dk_01184: {‘Hsign’: 800, ‘Dir’: 800, ‘Tm-1,0’: 800}, {‘Hsign’: 4320, ‘Dir’: 4320, ‘Tm-1,0’: 4320} YM_2_7-2_dk_00686: {‘Hsign’: 800, ‘Dir’: 800, ‘Tm-1,0’: 800}, {‘Hsign’: 3520, ‘Dir’: 3520, ‘Tm-1,0’: 3520} YM_2_8-3_dk_00537: {‘Hsign’: 800, ‘Dir’: 800, ‘Tm-1,0’: 800}, {‘Hsign’: 4480, ‘Dir’: 4480, ‘Tm-1,0’: 4480} KM_2_8-4_dk_00054: {‘Hsign’: 800, ‘Dir’: 800, ‘Tm-1,0’: 800}, {‘Hsign’: 4960, ‘Dir’: 4960, ‘Tm-1,0’: 4960}

waterlevel waveval winddir windspeed hr_locid hr_location waveval_type waveval_id
0 -0.400000 0.000000 225.0 0.0 1 YM_2_6-1_dk_01009 2 1
1 -0.203294 0.000000 225.0 0.0 1 YM_2_6-1_dk_01009 2 1
2 -0.006588 0.000000 225.0 0.0 1 YM_2_6-1_dk_01009 2 1
3 0.190118 0.000000 225.0 0.0 1 YM_2_6-1_dk_01009 2 1
4 0.386824 0.000000 225.0 0.0 1 YM_2_6-1_dk_01009 2 1
... ... ... ... ... ... ... ... ...
60475 4.712467 4.825155 360.0 42.0 111 KM_2_8-4_dk_00054 6 2400
60476 4.909100 4.856465 360.0 42.0 111 KM_2_8-4_dk_00054 6 2400
60477 5.105733 4.887775 360.0 42.0 111 KM_2_8-4_dk_00054 6 2400
60478 5.302367 4.919085 360.0 42.0 111 KM_2_8-4_dk_00054 6 2400
60479 5.499000 4.950395 360.0 42.0 111 KM_2_8-4_dk_00054 6 2400

60480 rows × 8 columns

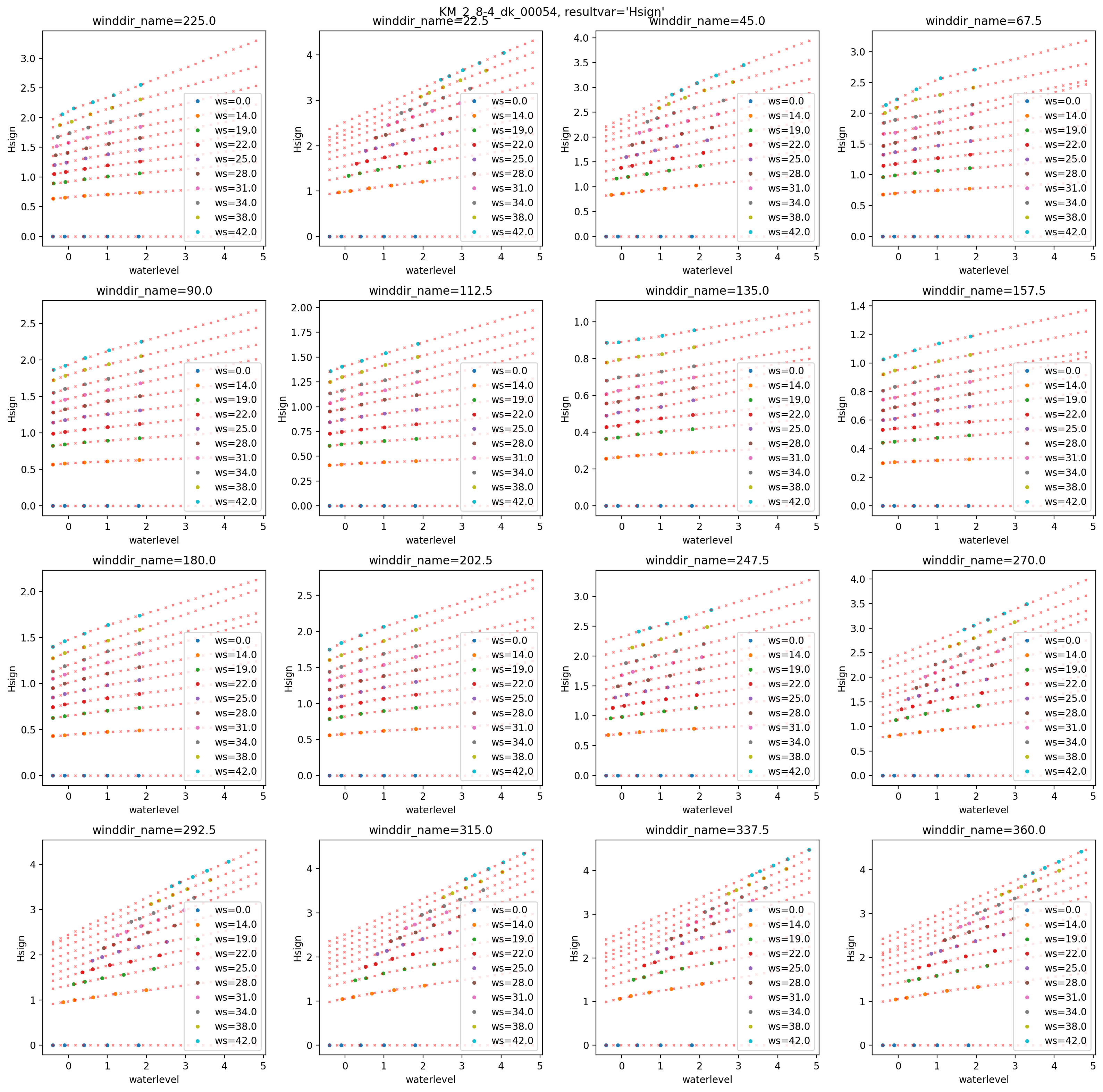

Als visuele controle is voor een locatie de eerste golfparameter geplot voor alle windrichtingen en windsnelheden. in rood zijn de geïnterpoleerde/geëxtrapoleerde waardes opgenomen.

hr_locid = np.sort(all_df_red.hr_locid.unique())[3]
df1 = all_df[all_df.hr_locid == hr_locid]
df2 = all_df_red[all_df_red.hr_locid == hr_locid]

nplots = len(hrd_wind)
ncols = 4
nrows = int(ceil(nplots / 4))

for waveval_row in hrd_resultvar.itertuples():
    resultvar = waveval_row.ColumnName
    if resultvar not in wave_param_names[0]:
        continue

    fig, axs = plt.subplots(
        ncols=ncols, nrows=nrows, figsize=(4 * ncols, 4 * nrows), dpi=100
    )

    for wind_row in hrd_wind.itertuples():
        winddir_id = wind_row.HRDWindDirectionId
        winddir_name = wind_row.Direction

        for ws in np.sort(df1.windspeed.unique()).tolist():
            df1i = df1[
                (df1.winddir == winddir_name)
                & (df1.windspeed == ws)
                & (df1.waveval_type == waveval_row.ResultVariableId)
            ]
            df2i = df2[
                (df2.winddir == winddir_name)
                & (df2.windspeed == ws)
                & (df2.waveval_type == waveval_row.ResultVariableId)
            ]
            df1i = df1i.rename(columns={"waveval": resultvar})
            df2i = df2i.rename(columns={"waveval": resultvar})

            row = int((winddir_id - 1) / ncols)
            col = winddir_id - 1 - row * ncols
            ax = axs[row, col]
            df1i.plot(
                ax=ax, x="waterlevel", y=resultvar, marker=".", lw=0, label=f"{ws=}"
            )
            df2i.plot(
                ax=ax,
                x="waterlevel",
                y=resultvar,
                marker="x",
                lw=0,
                color="red",
                markersize=2,
                alpha=0.5,
                legend=False,
            )

        ax.set_ylabel(resultvar)
        ax.set_title(f"{winddir_name=}")

    fig.suptitle(f"{locrow.Name}, {resultvar=}")
    fig.tight_layout()

Opslaan van golfdata in TBCI formaat

We gaan de golfdata opslaan in drie bestanden: - waveval_id.csv: bevat de ‘metadata’ van een golfgegevenscombinatie (hr-locatie, windrichting, windsnelheid, golfparametertype) - waveval.csv: bevat de daadwerkelijke gegevens per golfgegevenscombinatie. Zal intern gekoppeld worden aan waveval_id via waveval_id kolom. - waveval_uncert.csv: deze bevat per hr-locatie, sluitsituatie en golfparametertype de modelonzekerheden (normale verdeling met mu/sigma). Dit kan ook via de yaml configuratie van de toolbox ‘globaal’ (voor alle locaties) opgegeven worden. In dat geval is deze tabel niet nodig.

In het volgende codeblok werken we de opgehaalde data om naar waveval_id.csv en waveval_csv.

groupcols = [
    "waveval_id",
    "waveval_type",
    "hr_locid",
    "hr_location",
    "winddir",
    "windspeed",
]
waveval_id_table = []
waveval_table = []
for groupvals, group in all_df_red.groupby(groupcols):
    waveval_id_table.append(groupvals)
    waveval_table.append(group[["waveval_id", "waterlevel", "waveval"]].copy())

waveval_id_table = pd.DataFrame(waveval_id_table, columns=groupcols)
waveval_table = pd.concat(waveval_table, ignore_index=True)

display(waveval_id_table)
display(waveval_table)
waveval_id waveval_type hr_locid hr_location winddir windspeed
0 1 2 1 YM_2_6-1_dk_01009 225.0 0.0
1 2 2 1 YM_2_6-1_dk_01009 225.0 14.0
2 3 2 1 YM_2_6-1_dk_01009 225.0 19.0
3 4 2 1 YM_2_6-1_dk_01009 225.0 22.0
4 5 2 1 YM_2_6-1_dk_01009 225.0 25.0
... ... ... ... ... ... ...
2395 2396 6 111 KM_2_8-4_dk_00054 360.0 28.0
2396 2397 6 111 KM_2_8-4_dk_00054 360.0 31.0
2397 2398 6 111 KM_2_8-4_dk_00054 360.0 34.0
2398 2399 6 111 KM_2_8-4_dk_00054 360.0 38.0
2399 2400 6 111 KM_2_8-4_dk_00054 360.0 42.0

2400 rows × 6 columns

waveval_id waterlevel waveval
0 1 -0.400000 0.000000
1 1 -0.203294 0.000000
2 1 -0.006588 0.000000
3 1 0.190118 0.000000
4 1 0.386824 0.000000
... ... ... ...
60475 2400 4.712467 4.825155
60476 2400 4.909100 4.856465
60477 2400 5.105733 4.887775
60478 2400 5.302367 4.919085
60479 2400 5.499000 4.950395

60480 rows × 3 columns

De modelonzekerheden van de golfgegevens willen we ook opslaan en gebruiken in waveval_uncert.csv.

uncert = hrd_uncert.merge(
    hrd_resultvar[["HRDResultColumnId", "ResultVariableId"]], on="HRDResultColumnId"
)
uncert = uncert[
    uncert.ResultVariableId.isin(waveval_id_table.waveval_type.unique())
    & uncert.HRDLocationId.isin(waveval_id_table.hr_locid.unique())
].copy()
uncert = uncert.rename(
    columns={
        "HRDLocationId": "hr_locid",
        "ClosingSituationId": "closing_situation",
        "ResultVariableId": "waveval_type",
        "Mean": "mean",
        "Standarddeviation": "stddev",
    }
)
uncert = uncert[["hr_locid", "closing_situation", "waveval_type", "mean", "stddev"]]
display(uncert)
hr_locid closing_situation waveval_type mean stddev
1 111 1 2 0.99 0.19
3 111 1 6 0.96 0.11
13 1 1 2 0.99 0.19
15 1 1 6 0.96 0.11
17 7 1 2 0.99 0.19
19 7 1 6 0.96 0.11
21 56 1 2 0.99 0.19
23 56 1 6 0.96 0.11
25 98 1 2 0.99 0.19
27 98 1 6 0.96 0.11

De bijbehorende dataframes kunnen nu opgeslagen worden als CSV bestanden. Deze CSV bestanden zijn direct bruikbaar in het voorbeeld FragilityCurveOvertoppingWaveData (specifiek voor de class FragilityCurveOvertoppingWaveDataMultiple)

# waveval_table.to_csv("waveval.csv", index=False)
# waveval_id_table.to_csv("waveval_id.csv", index=False)
# uncert.to_csv("waveval_uncert.csv", index=False)

Koppelen van hr-locatie naar Toolbox locatie

De locaties in een HR database moeten we nog koppelen aan toolbox vakken. Hiervoor gebruiken we de zojuist afgeleide hr_locid kolom en koppelen we die aan een Toolbox Continu Inzicht section_id en failuremechanismid (in het geval van GEKB is dit 2).

De impliciete aanname die hierbij gedaan wordt is dat de waterstand bij een vak gelijk is aan de waterstand van een voorspelpunt van Toolbox Continu Inzicht. Dit klopt niet helemaal, aangezien de voorspelpunten veelal op de as van de rivier liggen en de HR locaties aan de oever liggen en bij de oever bijvoorbeeld scheefstand kan optreden.

df_locs = pd.DataFrame(
    {
        "section_id": [10, 11, 12, 13, 14],
        "failuremechanismid": 2,
        "hr_locid": [13421227, 13421170, 13421114, 13421058, 13421001],
    }
)

# df_locs.to_csv("section_hrloc.csv", index=False)

display(df_locs)
section_id failuremechanismid hr_locid
0 10 2 13421227
1 11 2 13421170
2 12 2 13421114
3 13 2 13421058
4 14 2 13421001

Het voorbeeld hierboven maakt deze koppeling handmatig tussen section_id en hr_locid. het is ook mogelijk om dit automatisch te doen op basis van bijvoorbeeld de centroide van een vak en de dichtsbijzijnde HR-locatie.

We merken hierbij op dat bij de beoordeling van een waterkering niet altijd de dichtsbijzijnde HR-locatie is gekozen. Indien de vakken in Toolbox Continu Inzicht overeenkomen met de beoordelingsvakken, is het waardevol om de gekozen koppelingen tussen HR-locatie en dijkvak in ieder geval te beschouwen ook voor Toolbox Continu Inzicht.

for section_row in df_sections.itertuples():
    idx_hrloc = hrd_locs.sindex.nearest(section_row.geometry.centroid, return_all=False, max_distance=None)[1, 0]
    hr_locid = hrd_locs.HRDLocationId.iat[idx_hrloc]
